Electric Tillers
Product Details:
Product Description

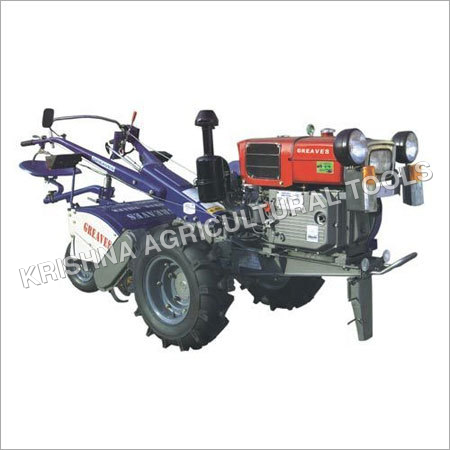

Power Tiller
Technical Data:
| Product Specifications | |
| Engine | |
| BoreX Stroke Displacement Compression 2 Hr Rating 12 Hr-Rating SFC LPH LOC Dry wt Fuel Tank Capacity Cooling water Oil Capacity Air Cleaner Lubrication Starting | 100X115mm 903cc 20 is to 1 11Kw/2000 rpm 10.9Kw/2000 rpm 268 gm/kw/hr 1.5 0.78 160 Kg 16Lit 5Lit. 3.6 Lit. 3 stage oil bath type Combined pressure with splashing Hand cranking |
| Tillers | |
| LXWXH Gross wt Clutch Brake Tilling Speed Rotovator No. of tynes Final transmission Sitting arrangement Wheel size Wheel Tread Wheel pressure Loading capacity | 2990 515 kg Double Disc constant Internal expanding wet type First 2-Speeds provided Double chain Detachable type 6.00-12 800 mm 137-196 Kpa 1.5-2 tonnes |
| Performance | |
| Tilling width Tilling depth Tilling rate Ground clearance Speed(km/hr) 6 forward 2 reverse Rotary speed High Low Transmission: Efficiency: Kw at rotary: | 600mm 150mm 0.138ha/hr 170 nm 1.53 to 16.70 1.1 & 4.21 TWO 300RPM 199RPM 90% 10.1 |
